Sunday, April 26, 2009

cutting and digging








removed the drivers side wing












well the goal for today was to remove the drivers side wing to see what there was for rust/rot hidden away.

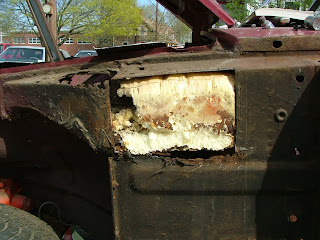

I knew the person who did a earlier restore had packed this area with self expanding foam but did not know the extent of this
the mud shield came out after removing a few self tapping screws (all bolts were either missing or cut off).
as you can see there has been some patching and the inner depths look clean (sticker is still there from when the lower fender was replaced.
the sill area was not screwed in so it had to have the welds cut and at the tail of the wing it was also welded, alot of the bolts also need to be cut since the captive nut were free spinning
THE WING HAS LEFT THE BODY -finally

Sunday, April 19, 2009

First Sunday in










Well I spent the day Scraping and wire brushing the passenger's side floor pan
the Glue that was used to hold the indoor outdoor carpet down actually looks like construction adhesive that you glue wood together with, I work for an importer of matting and flooring so I have seen my share of adhesives and to say "I know floor adhesives and Mr this is not floor adhesive, I think I know what I am talking about.
here are some of the Clean shots of the pan
two stubbling blocks today, the hand brake and the oval around the shifters would not budge, and I was heavy with the hammer on my Impact Screwdriver

Saturday, April 18, 2009

as the day goes









Okay so I took the rag top off and fitted the Hard top, its a Dynaplastic's who was bought by Smoothline to get rid of the other guy - can't beat em buy em!

Passangers foot well shows some rust - notice the rustoleum - did not work as advertise
behind / under the glove box not bad
drivers side - we have rust and rot, this is under the dash on the drivers side (if you laid down with your head on the floor pan between the clutch and the fender and looked up) this is a redo area, what is this panel called and who has it????
foot well is okay we will be scraping and painting

start of the day





okay started a great Sat morning with Pancakes at the COA for a fund raiser, then painted the floor of the boot with rust-proofing paint what I used was SEM Rust -Shield in Black
started to pull the interior carpet to find rust!
odd thing is if you look at the photos it looks like it was treated with rustoleum red - I will be using the heavy duty stuff

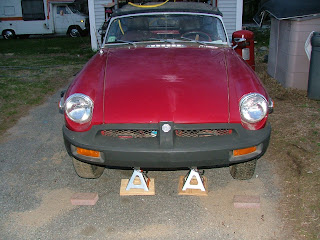

up in the air drivers side




up in the air





up on jack stands and did a photo view of the passenger side and rear, getting dark out

fuel pump




pulled the fuel pump labeled the wires I will be painting and rust prep'ing the Boot Saturday as long as the weather holds
now on the dumb side I replaced the fuel line and tried starting the car
ran briefly with out a fuel pump
for real life hit this youtube video
http://www.youtube.com/watch?v=sgzhr6US3j4&feature=channel_page

the Boot (Down and Dirty)






well the weather was nice on Friday evening, so I rolled the dice and started to clean and prep the Boot (trunk as it is called in the colonies)
not as bad as I had worried, two spots with iron pin worm and the low spot over the tank
